DS1065-07
1.27mm Female Header Single Row V/T Type H=4.6mm
Product series | DS1065-07 |
| Pitch | 1.27mm |
| Product description | Female Header Single Row V/T Type |
| No.of contacts | 1*1~1*40 |
| Products type | Board to Board |
| Installation type | V/T |
| Plastic material | PA9T |
| Flame retardant class of plastics | UL94V-0 |
| Hot wire test | / |
| Conventional color of plastics | black |
| Unusual color of plastic | / |
| Whether the plastic color can be customized | / |
| Pin pin terminal material | Copper alloy |
| Pin pin terminal electroplating | gilding |
| Pin pin terminal electroplating customization | / |
| Spring material | / |
| Regular electroplating of spring | / |
| Spring custom plating | / |
| Type of package | In a box/tube |
| Package type customization | / |
| Coldering temperature | 260℃ |
| Rated currency | 1A |
| Rated voltage | / |
| Contact resistance | 30mΩ Max |
| Insulation resistance | 500MΩ minimum |
| Withstand voltage | 300V AC 1minitue |
| Plug-and-pull life | / |
| Operation temperature | (-40~+105)℃ |
| Applicable wire diameter | / |
| RoHS 2.0 fits the bill | Conform to |
| REACH compliance | / |
| Shelf life | Three to six months |
| AQL acceptable standard | 0.65 |

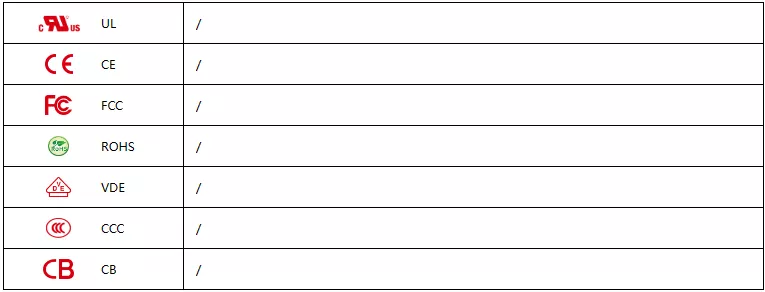

| Certification status | / |
